WINCH - HEAVY DUTY WINCH

For winching automatic feeders, nests and other heavy equipment

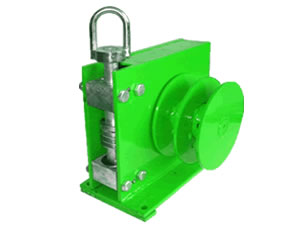

CHD-2000 WINCH

  1. 2000 lb. capacity
  2. Trouble-free worm gear design Self-braking 49:1 gear ratio
  3. Use cable with double back pulleys for systems longer than 200'
  4. Divided reel
  5. Oven-cured epoxy coating lasts longer than conventional zinc, chrome or enamel finish
  6. Shafts and gears are made of high tensile alloy steel
  7. All gears are heat-treated, high-carbon steel to provide longer life
  8. Seal gear box

  1. 3000 lb. capacity hub diameter: 3.62"
  2. Gear ratio 39:1
  3. Welding gear box and sold cast big gear
  4. Heavy-duty clutch assembly
  5. Brake washer is chrome plated to prevent rust
  6. Alemite grease fitting
  7. Loop drive
  8. New improved clutch design eliminates the need for adjustment

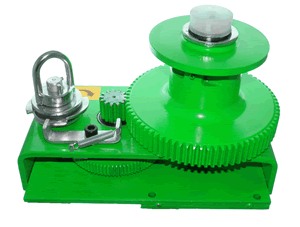

CHD-3000 WINCH

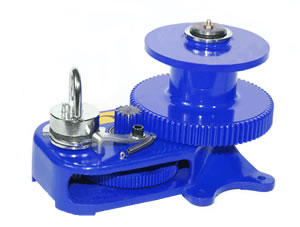

CHD-3000A WINCH

  1. 3000 lb. capacity hub diameter: 3.62"
  2. Gear ratio 41:1
  3. Cast gear box and sold cast big gear
  4. Heavy-duty clutch assembly
  5. Brake washer is chrome plated to prevent rust
  6. Alemite grease fitting
  7. Loop drive
  8. New improved clutch design eliminates the need for adjustment
  9. Big gear plate for more wire rope

  1. 3500 lb. capacity hub diameter: 3.62"
  2. Gear ratio 41:1
  3. Cast gear box and sold cast big gear
  4. Heavy-duty clutch assembly
  5. Brake washer is chrome plated to prevent rust
  6. Alemite grease fitting
  7. Loop drive
  8. New improved clutch design eliminates the need for adjustment
  9. Big gear plate for more wire rope

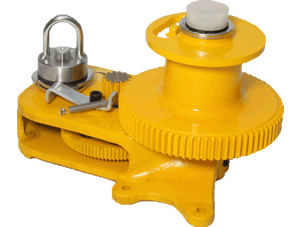

CHD-3500 WINCH

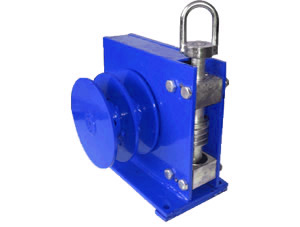

CHD-3600 WINCH

  1. 3600 lb. capacity 65:1 gear ratio
  2. Trouble-free worm gear design
  3. Self-braking
  4. Use cable with double back pulleys for systems longer than 300'
  5. Divided reel
  6. Oven-cured epoxy coating lasts longer than conventional zinc, chrome or enamel finish
  7. Shafts and gears are made of high tensile alloy steel
  8. All gears are heat-treated, high-carbon steel to provide longer life
  9. Seal gear box

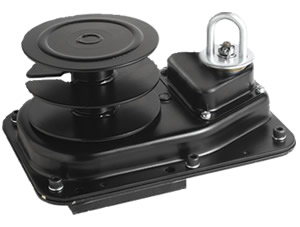

  1. 5000 lb Capacity
  2. 90.24:1 ratio-No double-back required, 2" diameter divided reel
  3. Holds approximately 64' of 3/16" cable
  4. Reel is pre-drilled and tapped to accept strap kit
  5. Can Replace 2 Conventional Winches
  6. Exclusive long use life warranty
  7. Oven-cured epoxy coating lasts longer than conventional zinc, chrome or enamel finish
  8. Shafts and gears are made of high tensile alloy steel
  9. All gears are heat-treated, high-carbon steel to provide longer life

CHD-5000 WINCH
