WINCH - HAND WINCH

  1. Electro coating epoxy coating lasts longer than conventional zinc, chrome or enamel finish
  2. Shafts and gears are made of high tensile alloy steel
  1. All gears are heat-treated, high-carbon steel to provide longer life
  2. One-way ratchet free spools in “off” position
  3. Offered different colours

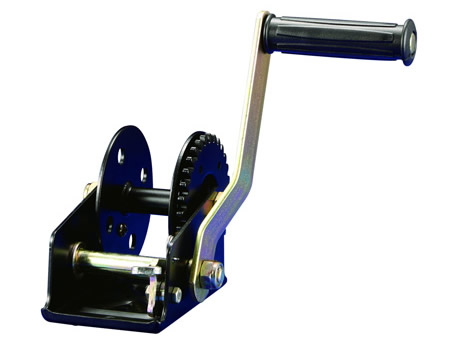

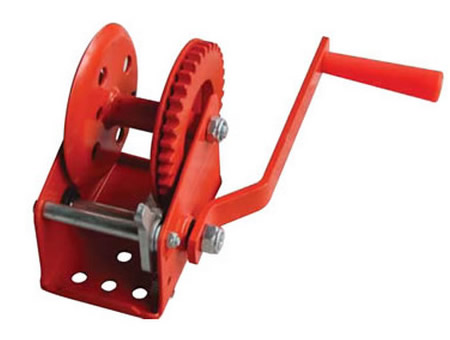

WINCH 600/WINCH 1000

WINCH 1200/WINCH 1400

WINCH 1600/WINCH 1800

WINCH 2000/WINCH 2500

MODEL LIFTING CAPACITY(lbs/kg) GEAR RATIO HANDLE LENGTH(mm) DRUM-HUB DIAMETER(mm) CABLE SIZE(mm)
C-600 300/135 3.1:1 165 ∮18 ∮4.2
C-1000 500/225 4.1:1 200 ∮18 ∮4.5
C-1200 600/270 4.1:1 225 ∮32 ∮4.8
C-1400 700/315 4.1:1 225 ∮32 ∮4.8
C-1600 800/360 5.1:1 225 ∮32 ∮4.8
C-1800 900/405 4.1:1&9.8:1 250 ∮70 ∮4.8
C-2000 1000/150 4.1:1&9.8:1 250 ∮70 ∮5
C-2500 1200/540 5.1:1&12.1:1 275 ∮80 ∮5.5
