- Auto brake locks the load securely when the handle is released
- Covered brake mechanism protects against weather, dirt and other contamination
- Dual friction brake pads
- Shafts and gears are made of high tensile alloy steel
- All gears are heat-treated, high-carbon steel to provide longer life
- One-way ratchet free spools in “off” position
- Electro coating epoxy coating lasts longer than conventional zinc, chrome or enamel finish
- Offered different colours

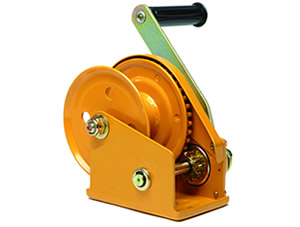

AUTO BRAKE WINCH 1200

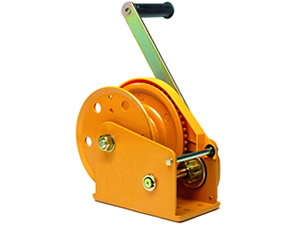

AUTO BRAKE WINCH 1800

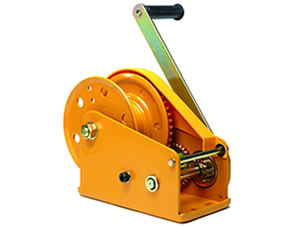

AUTO BRAKE WINCH 2600
| MODEL |
PULLING CAPACITY(lbs/kg) |
LIFTING CAPACITY(lbs/kg) |
GEAR RATIO |
HANDLE LENGTH(mm) |
HUB DIAMETER(mm) |
CABLE DIAMETER(mm|inch)(Ref.) |
CABLR STORAGE CAP(m) |
| CBW-1200 |
1200 / 550 |
600/275 |
4.1:1 |
210 |
Ø32 |
Ø4.8｜Ø3/16 |
23 |
| CBW-1800 |
1800 / 800 |
900/400 |
5.0:1 |
320 |
Ø70 |
Ø6.4｜Ø1/4 |
24 |
| CBW-2600 |
2600 / 1180 |
1300/590 |
10.0:1 |
320 |
Ø80 |
Ø8.0｜Ø5/16 |
18 |
